RicohSingle-function printerRead on ricoh-usa.comSearched on PriceQThis product is no longer available for purchase

Black and White Printer

Last updated Nov 1, 2026 · First read Oct 28, 2026 · 7 entries in Page history

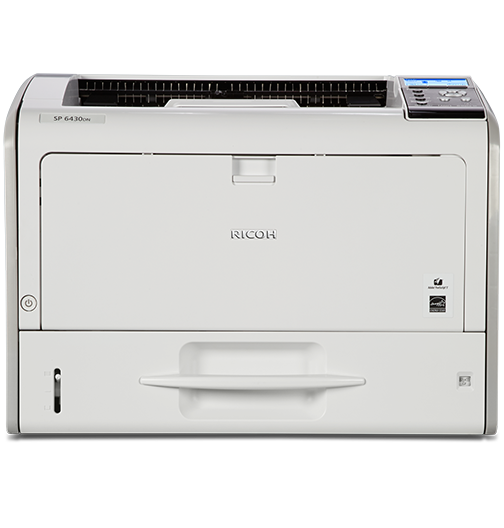

The SP 6430DN is a desktop black and white LED printer that prints at 38 ppm, at up to 1200 x 1200 dpi, with automatic duplexing and a 4-line LCD.

38ppm
Print speed: 20,000prints
Maximum monthly volume: 2,100sheets
Maximum paper capacity: 46.3lb.
Weight

Part number or model: SP 6430DN
Type: Single-function printer
Catalog number: Not assigned yet
Searched on PriceQ as: “SP-6430DN”

Timeline

Dates from the sources in References

28.01.2016Ricoh Europe announces this BLI award
NowMarked “This product is no longer available for purchase” on the source

Specifications

42 fields, as the sources state them

Product Summary

EDP: 4074821

Engine Specifications

Configuration: Desktop1
Color / Black & White: Black & White1
Technology: LED1
Toner Type: Dry, single component1
Operation Panel: 4-line LCD1
Black & White Speed: 38 ppm1
Maximum Monthly Volume: 20,000 prints1
Maximum Duty Cycle: 150,000 prints1
First Print Speed: 6.5 seconds or less1
Warm-Up Time: 17 seconds or less1
Recovery from Sleep Mode: 17 seconds or less1
Print Resolution: 300 x 300 dpi/600 x 600 dpi/ 1200 x 1200 dpi1
Standard Paper Capacity: 600 sheets (500-Sheet Tray + 100-Sheet Bypass Tray)1
Maximum Paper Capacity: 2,100 sheets1
Supported Paper Sizes: Standard Tray: 3.5" x 5.8" - 11.7" x 17" (90 x 148 mm - 297 x 432 mm) Optional PFUs: 3.9" x 5.8" - 11.7" x 17" (100 x 148 mm - 297 x 432 mm) Bypass Tray: 2.3" x 5" - 11.7" x 49.6" (60 x 127 mm - 297 x 1,260 mm)1
Supported Paper Weights: All Trays: 15 - 59 lb. Bond (56 - 220 g/m²) Duplex: 15 - 43 lb. Bond (56 - 162 g/m²)1
Supported Paper Types: Recycled Paper, Color Paper, Letterhead, Preprinted Paper, Plain Paper, Special Paper, Thick Paper, Thin Paper, Label Paper, Envelopes, OHP (Transparency)1
Duplexing: Automatic (standard)1
Power Requirements: 120V, 60Hz1
Power Consumption: Operating: 554W Sleep Mode: 0.45W or less1
Typical Energy Consumption (TEC): 0.502 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method.1
ENERGY STAR®: Certified1
Dimensions W x D x H: 18.1" x 15.4" x 13.7" (459 x 392 x 347.5 mm)1
Weight: 46.3 lb. (21 kg)1
Printing Process: Electro-photographic printing2
Standard Output Capacity: Up to 500 sheets, face down2
EPEAT: Gold *EPEAT Gold rating is applicable only in the USA.2

Controller Specifications

Processor Speed: 533 MHz1
Memory (Standard/Maximum): 512 MB/1 GB RAM1
Hard Disk Drive: 250 GB (Optional)1
Standard Interfaces: 10/100/1000Base-TX Ethernet (RJ45) Gigabit Network Interface USB 2.0 High Speed Type B (for direct computer connection) Dual USB 2.0 Host Type A (for external device connection) Dual SD Card Slots (for expanded functions/device customization)1
Printer Languages/Drivers: PCL5: 45 fonts + 13 International fonts PCL6: 45 fonts PostScript 3: 136 fonts1
Font Support: PCL5: 45 fonts + 13 International fonts PCL6: 45 fonts PostScript 3: 136 fonts1
Network Protocols: TCP/IP1
Supported Operating Systems: Windows XP, Vista, 7, 8, 8.1 Windows Server 2003/R2, Server 2008/R2, Server 2012/R2 Mac OS X 10.6 or later Citrix Presentation Server 4.0, 4.5 Citrix XenApp 5.0, 6.0, 6.5 SAP R/3 (Device Type/Barcode & OCR Packages) Various UNIX/Linux OS1
Device Management Software/Utilities: Web Image Monitor, @Remote, Device Manager NX Series, Printer Driver Packager NX1
Mobile Printing Support: Ricoh Smart Device Connector App1
Printer Features: Reduce/Enlarge, Collate, Layout (N-up), Toner Saving, Watermark, Rotate Print*, Support for Universal Driver, Sample Print**, Hold Print**, Store and Print**, Banner Page Print, Poster Print, Wi-Fi Protected Support (WPS), External USB Keyboard Support, Import/Export of Preference Settings *Optional 1GB Memory required. **Optional Hard Disk Drive required.1
Security Features: HDD DataOverwriteSecurity System (DOSS), Authentication for Windows, LDAP, Kerberos, Basic, User Code and 802.1x Wired; Encryption for Address Book, Authentication Password, SSL Communication, IPsec Communication, Hard Disk Drive; Network Protocol On/Off, IP Address Filtering, Unauthorized Copy Prevention, Quota Setting/Account Limit, SMTP over SSL, Compulsory Security Stamp, Locked/Stored Print1

Warranty

Warranty: The Ricoh SP 6430DN is under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first.2

History

Outstanding A3 Printer for Mid-Size Workgroups: 28.01.20164

Sources: ricoh-usa.com, Product header and the "Specifications" tab, "Supplies" and "Accessories" tabs, read Oct 28, 2026 UTC; ricoh-usa.com, "Download Brochure" PDF, System Specifications page, read Nov 1, 2026 UTC; ricoh-europe.com, News item "Ricoh earns four product awards from Buyers Laboratory LLC", read Nov 1, 2026 UTC.

Size and weight

Inches and pounds, millimetres and kilograms

The product

What	Inches and pounds	Millimetres and kilograms
Dimensions	W18.1×D15.4×H13.7 in	W459×D392×H347.5 mm
Weight	46.3 lb	21 kg

Figures in black are the maker’s. Figures in grey are converted by the wiki (1 in = 25.4 mm, 1 lb = 0.45359237 kg).

Documents

5 linked, none copied here

Ricoh SP 6430DN Desktop B&W LED Printerbrochure
User Guidemanual
Read This First (North America. Latin America 120V)manual
Quick Installation Guidemanual
Driver Installation Guidemanual

References

4 sources, each with the day it was read

ricoh-usa.com, Product header and the "Specifications" tab, "Supplies" and "Accessories" tabs, read Oct 28, 2026 UTC. Supports 37 specifications, the related products, that it is no longer sold, the documents
ricoh-usa.com, "Download Brochure" PDF, System Specifications page, read Nov 1, 2026 UTC. Supports 4 specifications
support.ricoh.com, Manuals list the product page links as "Download Manuals", read Nov 1, 2026 UTC. Supports the documents
ricoh-europe.com, News item "Ricoh earns four product awards from Buyers Laboratory LLC", read Nov 1, 2026 UTC. Supports 1 specification
